Understanding the root cause helps you target the right hardware component for adjustment:
Hinge Gravity Sag: Over time or right after hanging, the top hinge bears the majority of the door leaf's weight. If the top screws yield slightly under load, the door tilts downward, pinching the top-latch corner while opening up the top-hinge side gap.
Over-Tightened Mounting Screws: If installers over-torque hinge screws during installation, the hinge leaf is pulled too deep into the mortise, dragging the door too close to the hinge jamb.
Wall & Rough Opening Settlement: Inside filling inside the rough opening can expand or contract with temperature and humidity, squeezing or stretching the door frame after installation.
Inconsistent Hinge Depth: Improperly recessed or misaligned hinges will push the door panel diagonally, causing it to rub against the stop molding or latch plate.
1. The 3 mm (1/8-inch) Rule: A standard door requires a uniform clearance of 3 mm along the top, hinge side, and latch side, with 5–8 mm clearance at the bottom threshold.
2. Visual Inspection: Close the door and inspect the reveal with a light source behind it. Look for:
l V-Shaped Gap: Indicates the door is tilting due to upper hinge tension loss.
l Parallel Rubbing: Indicates the overall door panel is shifted too far left or right.

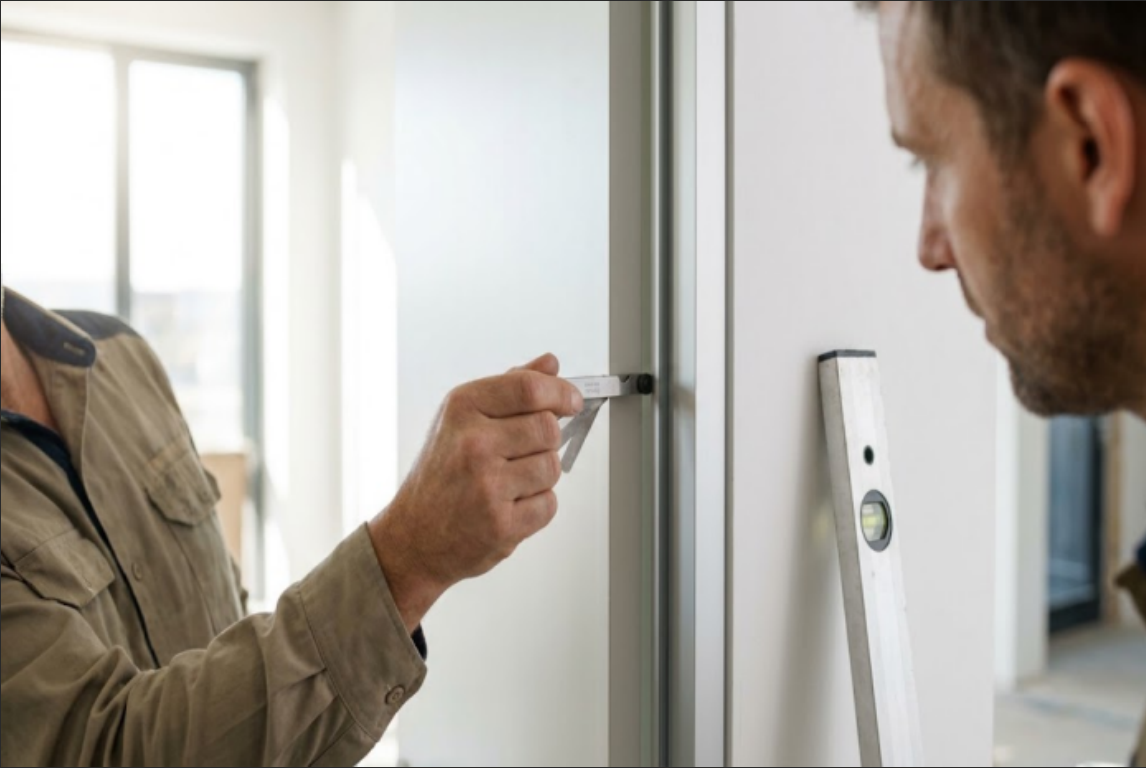

3. Check Frame Plumb: Use a spirit level on both the hinge jamb and latch jamb. If the frame itself is completely plumb, the issue lies strictly within hinge adjustment.
Method A: Standard Butt Hinges
To Fix Top-Corner Dragging (Door Sagging):
1. Open the door and locate the top hinge.
2. Tighten all frame-side screws firmly.
3. Pro Tip: If a screw spins freely, replace it with a longer 3-inch screw that drives through the frame directly into the wall framing stud. This pulls the top of the door leaf back toward the hinge jamb, restoring the latch-side clearance.
To Fix Hinge Side Gap Too Wide and Latch-Side Binding:
1. Loosen the middle and bottom hinge mounting screws by half a turn.
2. Insert a thin hinge shim or card spacer behind the hinge leaf on the frame side.
4. Retighten the screws. This gently pushes the bottom of the door leaf toward the latch side, balancing uneven margins.
Method B: Invisible Hinges Adjustment
If your doors are equipped with standard Invisible hinges, you can adjust the door gaps and alignment using an Allen wrench without detaching the door panel:
1. Vertical & Horizontal Fine-Tuning: Locate the main adjustment screw on the hinge leaf. Turning it clockwise/counter-clockwise shifts the door leaf slightly to correct sagging and equalize the vertical gaps, aiming for a uniform 3 mm clearance on both sides.
2. Depth Adjustment: Turn the depth control screw on the hinge body to push or pull the door leaf closer to the frame. Adjust until the door seal compresses evenly without adding excess resistance when locking the handle.
Most door gap issues do not stem from bad doors, but from flexible hardware that simply needs fine-tuning. By testing frame plumb, securing upper hinges, field teams can ensure flawless door operation and maintain project margins.
